| Home >> Products >> ABS Bulb Flat |
| Product Name: |

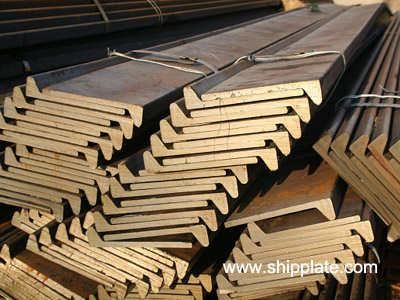

ABS Bulb Flat |
| Product Image: |
 |
| Description: |
1. manufacturer of bulb flat steel for shipbuilding
2. Certification: CCS, GL, LR, ABS, BV, DNV, RINA, NK, KR
| Model | size | Section
Area | Theoretical
weight | | b | t | h | rl | r | | 80x5 | 80 | 5 | 19 | 4 | ≤1.5 | 5.41 | 4.25 | | 80x6 | 6 | 20 | ≤2 | 6.21 | 4.88 | | 100x7 | 100 | 7 | 22.5 | 4.5 | ≤2 | 8.74 | 6.86 | | 100x8 | 8 | 23.5 | 9.74 | 7.65 | | 120x6 | 120 | 6 | 23 | 5 | ≤2 | 9.32 | 7.32 | | 120x7 | 7 | 24 | 10.52 | 8.26 | | 120x8 | 8 | 25 | 11.72 | 9.2 | | 140x7 | 140 | 7 | 26 | 5.5 | ≤2 | 12.43 | 9.75 | | 140x8 | 8 | 27 | 13.83 | 10.85 | | 140x10 | 10 | 29 | ≤3 | 16.63 | 13.05 | | 160x7 | 160 | 7 | 29 | 6 | ≤2 | 14.6 | 11.46 | | 160x8 | 8 | 30 | 16.2 | 12.72 | | 160x9 | 9 | 31 | 17.8 | 13.97 | | 160x11 | 11 | 33 | ≤3 | 21.00 | 16.49 | | 180x8 | 180 | 8 | 33 | 7 | ≤2 | 18.86 | 14.8 | | 180x9 | 9 | 34 | 20.66 | 16.22 | | 180x10 | 10 | 35 | ≤3 | 22.46 | 17.63 | | 180x11 | 11 | 36 | 24.26 | 19.04 | | 200x9 | 200 | 9 | 37 | 8 | ≤2 | 23.66 | 18.57 | | 200x10 | 10 | 38 | ≤3 | 25.66 | 20.14 | | 200x11 | 11 | 39 | 27.66 | 21.71 | | 200x12 | 12 | 40 | 29.66 | 23.28 | | 220x10 | 220 | 10 | 41 | 9 | ≤3 | 29.66 | 22.27 | | 220x11 | 11 | 42 | 29 | 24.5 | | 220x12 | 12 | 43 | 31.2 | 26.22 | | 240x10 | 240 | 10 | 40 | 10 | ≤3 | 33.49 | 25.5 | | 240x11 | 11 | 45 | 34.89 | 27.39 | | 240x12 | 12 | 46 | 37.29 | 29.27 | | 260x10 | 260 | 10 | 47 | 11 | ≤3 | 36.11 | 28.35 | | 260x11 | 11 | 48 | 37.71 | 30.39 | | 260x12 | 12 | 49 | 41.31 | 32.43 | | 280x11 | 280 | 11 | 51 | 12 | ≤3 | 42.68 | 33.5 | | 280x12 | 12 | 52 | 45.48 | 35.7 | | 280x13 | 13 | 53 | 48.28 | 37.9 | | 300x11 | 300 | 11 | 54 | 13 | ≤3 | 46.78 | 36.7 | | 300x12 | 12 | 55 | 49.79 | 39.09 | | 300x13 | 13 | 56 | 52.79 | 41.44 | | 320x12 | 320 | 12 | 58 | 14 | ≤3 | 54.25 | 42.6 | | 320x13 | 13 | 59 | 57.25 | 45.09 | | 320x14 | 14 | 60 | ≤4 | 60.85 | 47.6 | | 340x12 | 340 | 12 | 61 | 15 | ≤3 | 58.84 | 46.2 | | 340x13 | 13 | 62 | 62.24 | 48.86 | | 340x14 | 14 | 63 | ≤4 | 65.54 | 51.5 | | 370x13 | 370 | 13 | 66.5 | 16.5 | ≤3 | 69.7 | 54.7 | | 370x14 | 14 | 67.5 | 73.4 | 57.6 | | 370x15 | 15 | 68.5 | ≤4 | 77.10 | 60.5 | | 400x14 | 400 | 14 | 72 | 18 | ≤4 | 81.48 | 63.96 | | 400x15 | 15 | 73 | 85.48 | 67.1 | | 400x16 | 16 | 74 | 89.48 | 70.2 | | 430x14 | 430 | 14 | 76.5 | 19.5 | ≤4 | 89.7 | 70.6 | | 430x15 | 15 | 77.5 | 94.19 | 73.9 | | 430x17 | 17 | 79.5 | 102.79 | 80.7 | | 430x19 | 19 | 81.5 | 111.39 | 87.4 | | 430x20 | 20 | 82.5 | 115.00 | 90.8 |
|
