| Description: |
1. Standard:ASTM A106,ASTM A53,API-5L,API5CT,GB/T8163,GB
2. Material: GrB, X42, X52, X60,X65,X70,X80
Outside Diameter: 219mm - 3048mm
Wall Thickness: 4 - 22mm
Length: 12M - 20M

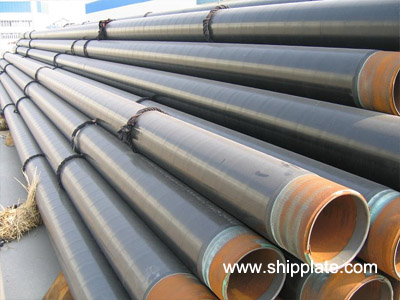

It is used for conveying gas, water, and petroleum of both the oil and natural gas industries
| Standard | Grade | Yield Strength (Mpa) | Tensile Strength ( Mpa) | Elongation (%) | Impact Energy(J) | | API SPEC 5L | PSL2 | | | Min | Max | Min | Max | |
Min | | B | 241 | 448 | 414 | 758 | 21 ~ 27 | 41(27) | | X42 | 290 | 496 | 414 | 758 | 21 ~ 27 | 41(27) | | X46 | 317 | 524 | 434 | 758 | 20 ~ 26 | 41(27) | | X52 | 359 | 531 | 455 | 758 | 20 ~ 24 | 41(27) | | X56 | 385 | 544 | 490 | 758 | 18 ~ 23 | 41(27) | | X60 | 414 | 565 | 517 | 758 | 18 ~ 22 | 41(27) | | X65 | 448 | 600 | 531 | 758 | 17 ~ 21 | 41(27) | | X70 | 483 | 621 | 565 | 758 | 16 ~ 20 | 41(27) | | X80 | 552 | 690 | 621 | 827 | 15 ~ 19 | 101(68 ) |
|
